Frequency
0.5-2.2GHz
Back to RF Power Amplifiers
Power Amplifier

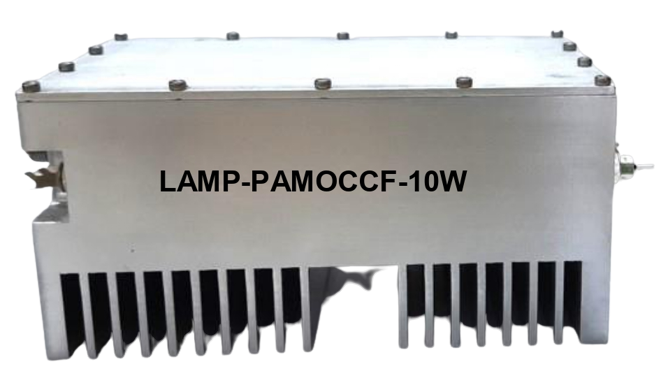

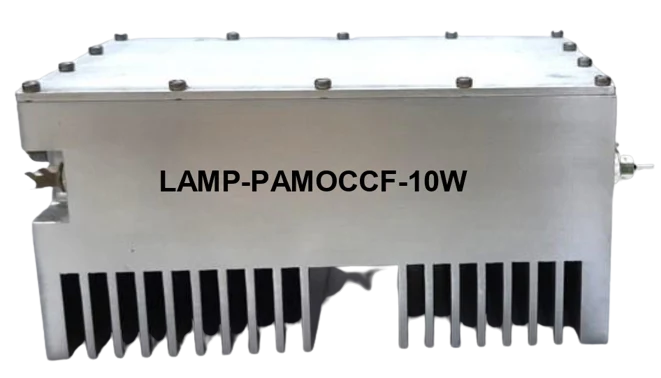

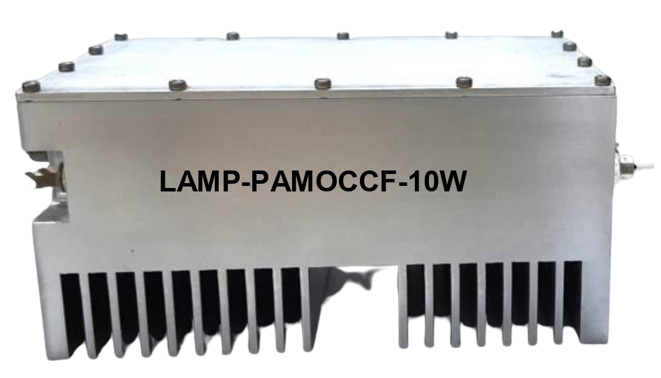

LAMP-PAMOCCF-10W
50 Ω, Wideband, 0.5 to 2.2 GHz, 10 W, 28V, SMA.
CellularSDRsRadars
Center Frequency
0.5-2.2 GHz
Output Power
10 W
Efficiency
60-71
Gain
8-9.4 dB
Key Features
Drain efficiency
60-71%
Output power
41.3-42.7dBm
Gain at saturation
8-9.4 dB
Gain Compression
3-4 dB
Applications
Application
Cellular
Application
SDRs
Application
Radars

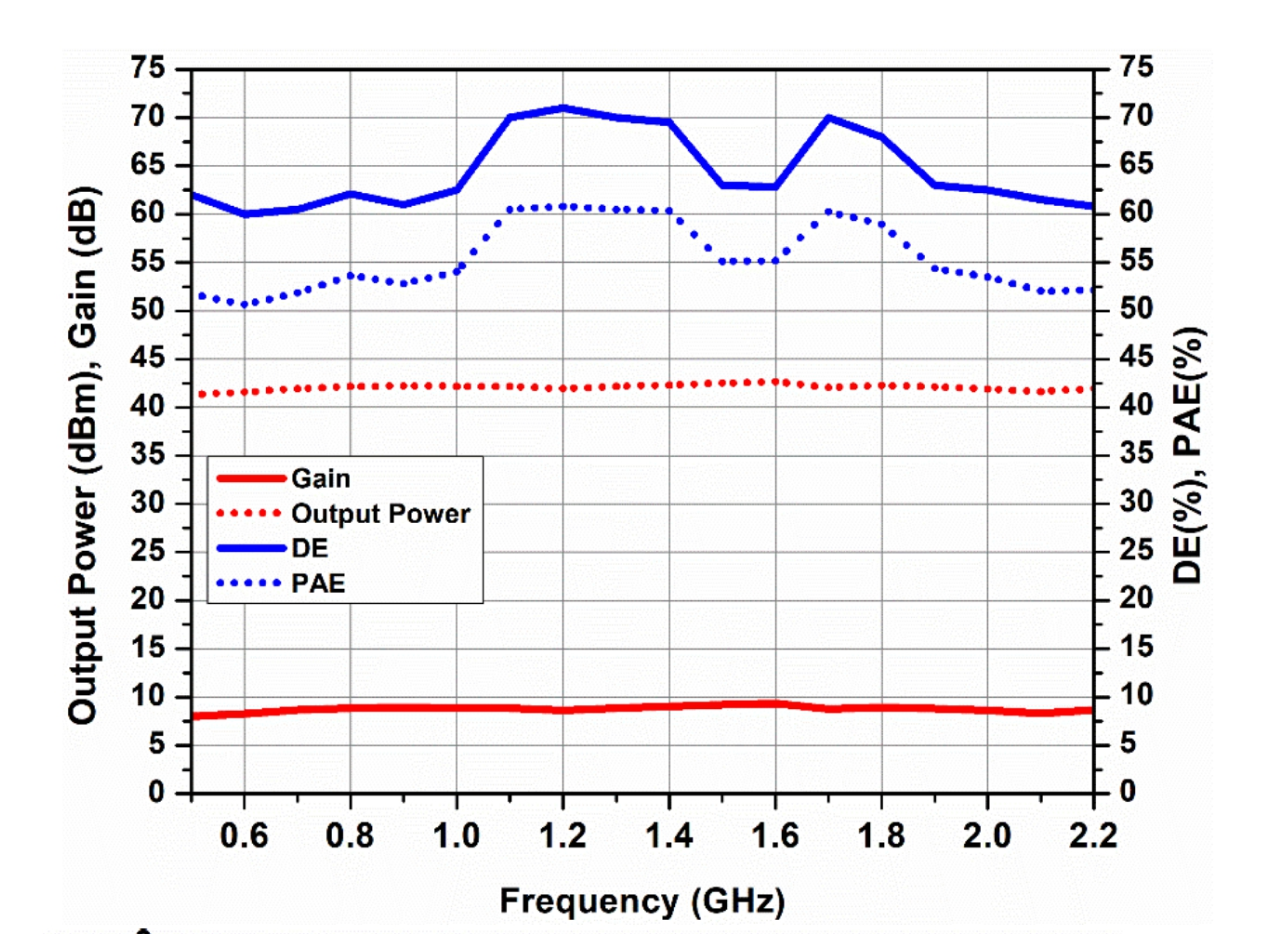

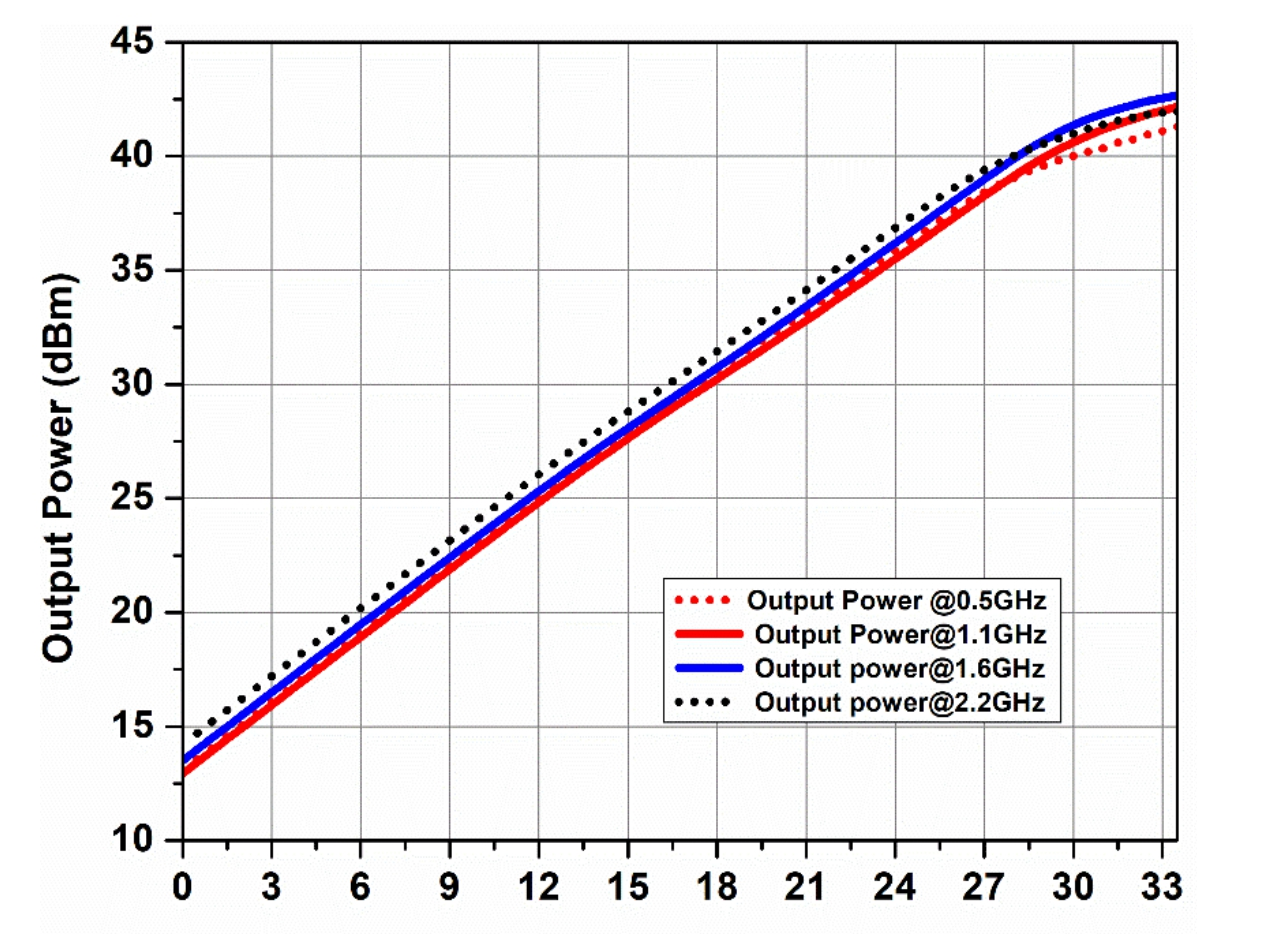

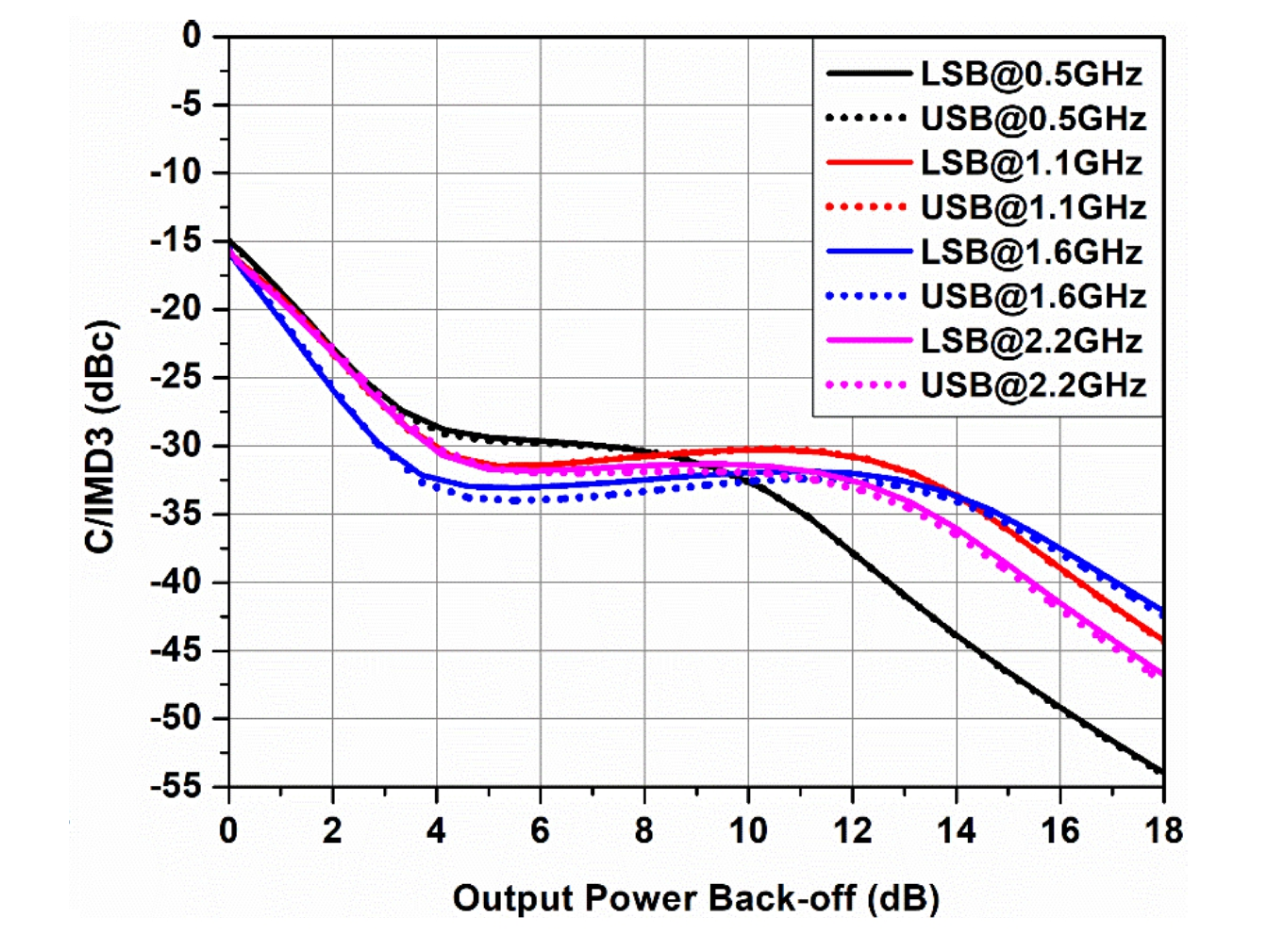

Diagrams
