Power Amplifier

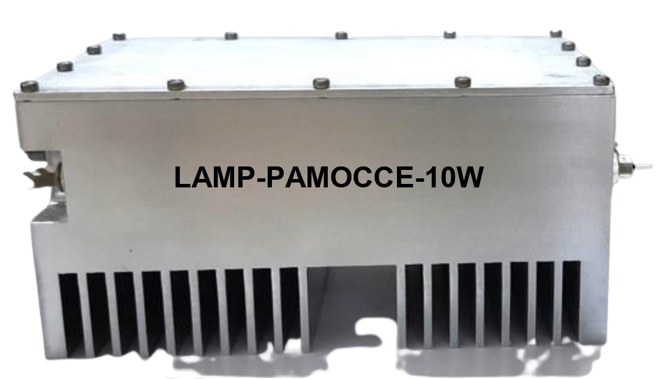

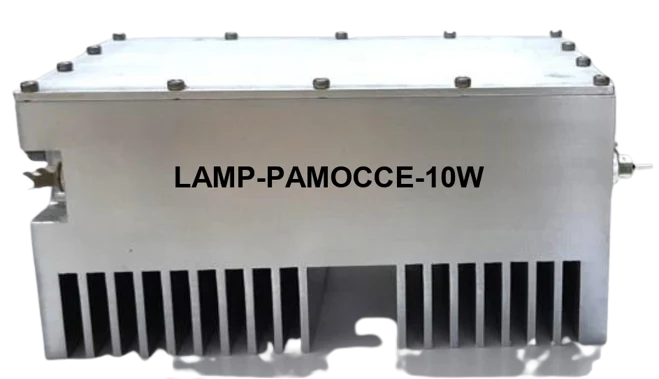

LAMP-PAMOCCE-10W

50 Ω, Wideband, 0.45 to 2.9 GHz, 10W, 28V, SMA.

TransmittersLaboratory useCellularcommunication systems

Center Frequency

0.49-2.9 GHz

Output Power

10 W

Efficiency

60-72

Gain

8.6-10.7 dB

Key Features

Frequency

0.45-2.9GHz

Drain efficiency

60-72.9%

Output power

39.6-41.7dBm

Output power flatness

2dB

Gain

8.6-10.7 dB

Gain Compression

2-4dB

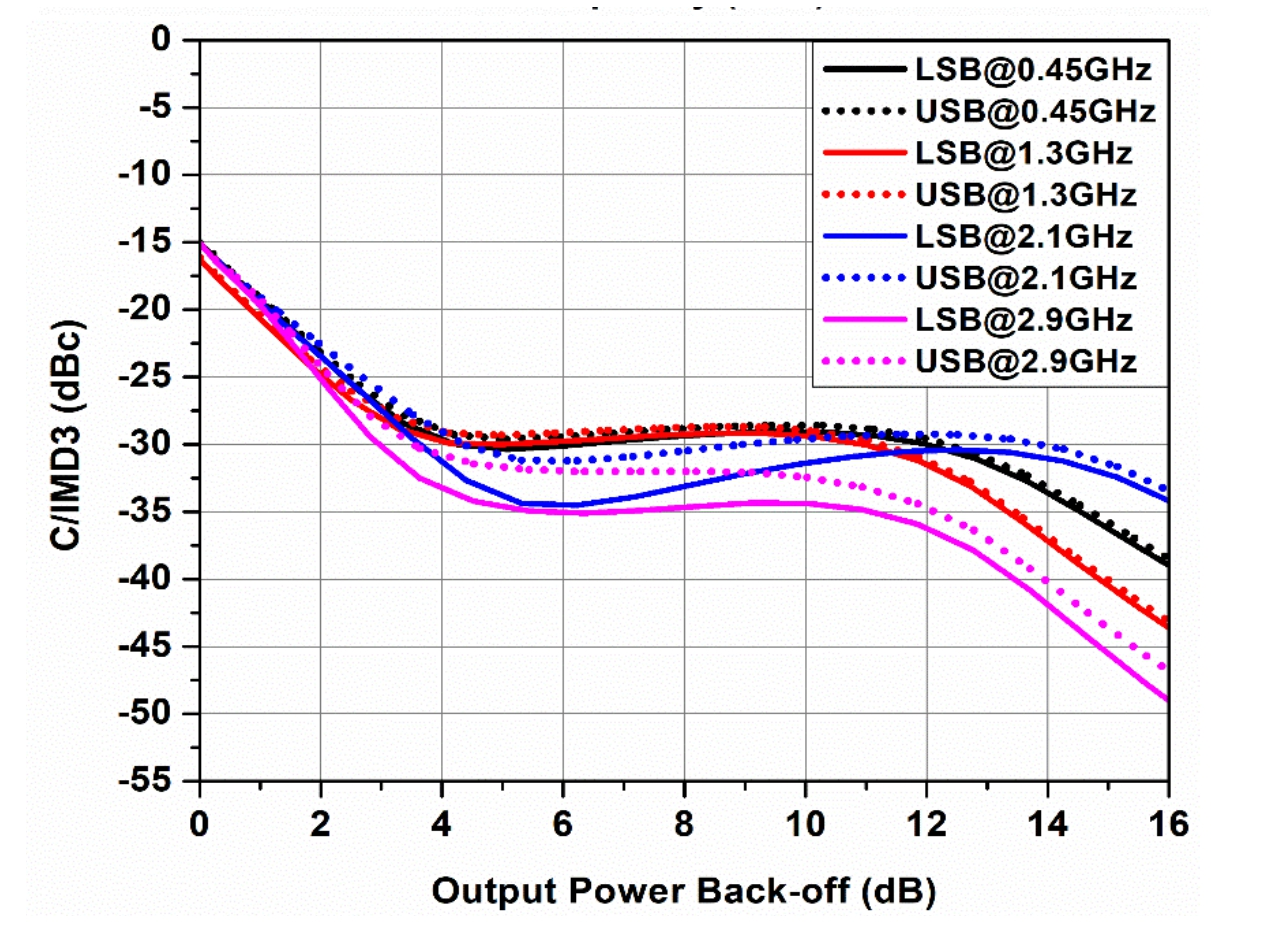

C/IMD3, < -26 dBc at 3dB back-off of output power

Applications

Application

Transmitters

Application

Laboratory use

Application

Cellular

Application

communication systems

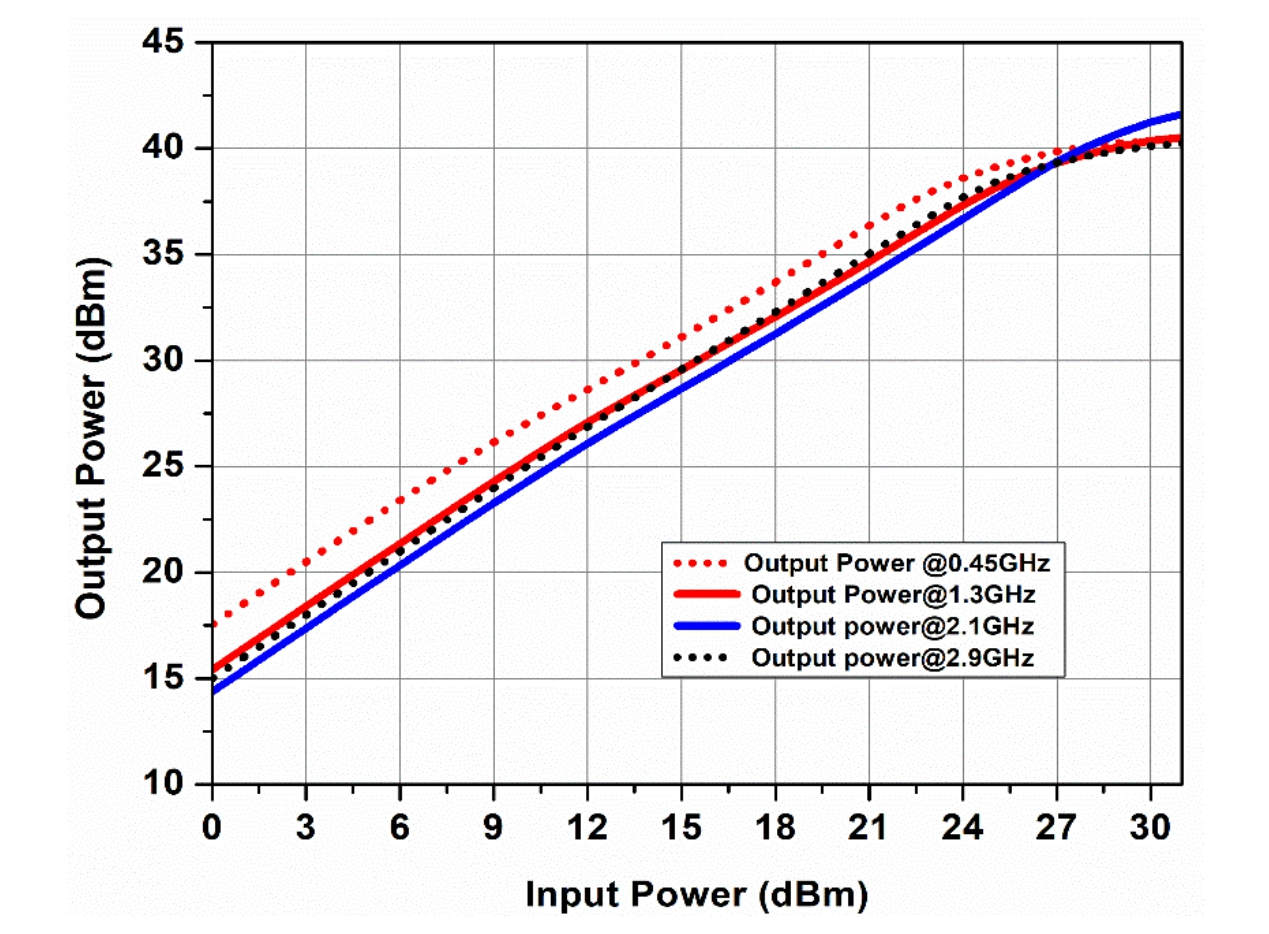

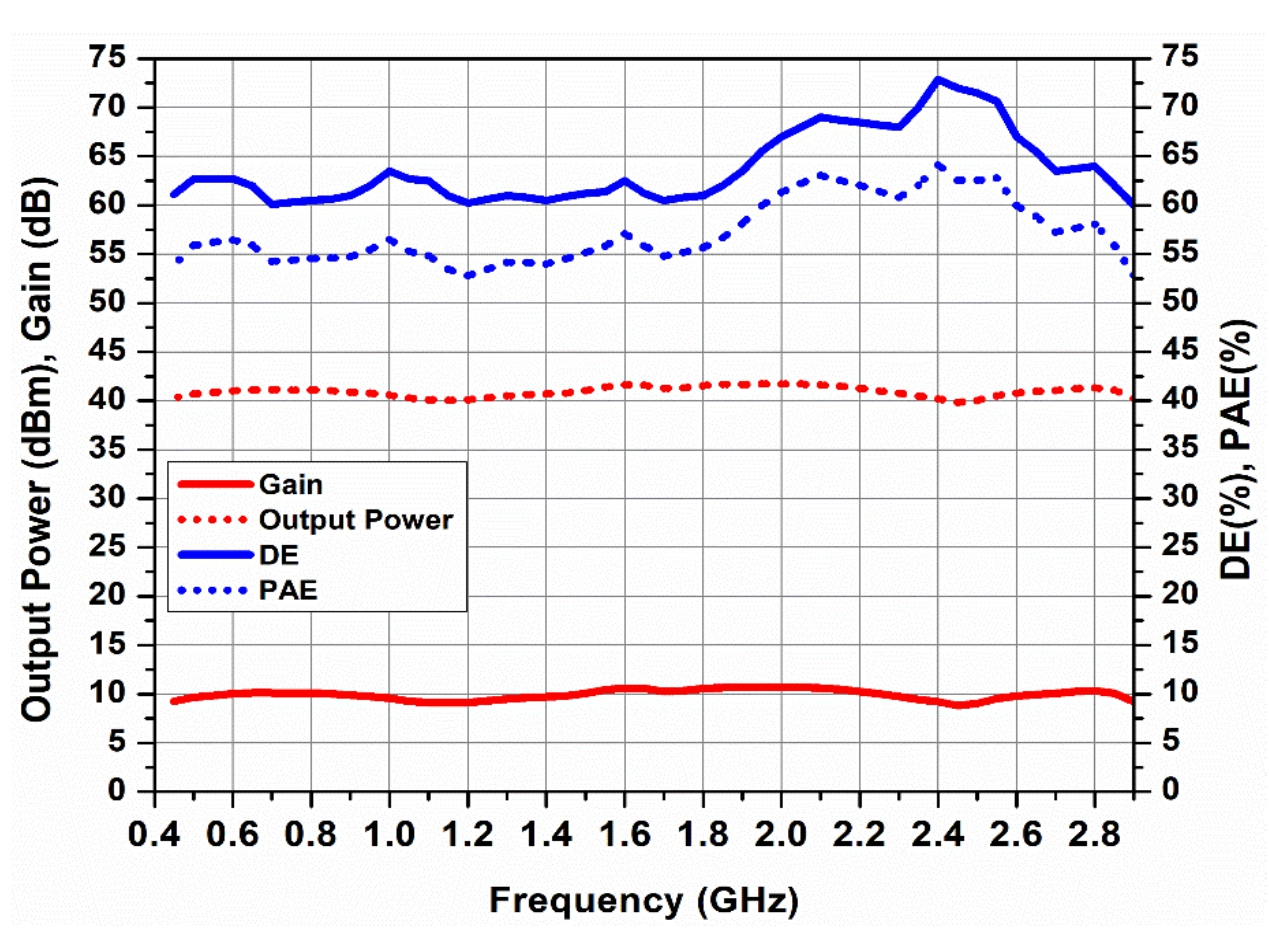

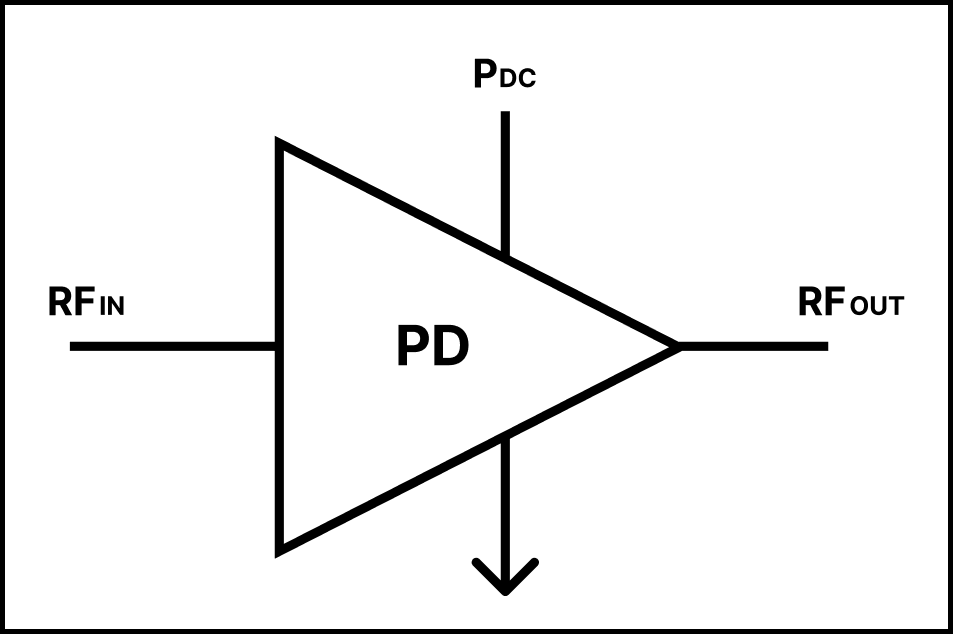

Diagrams
