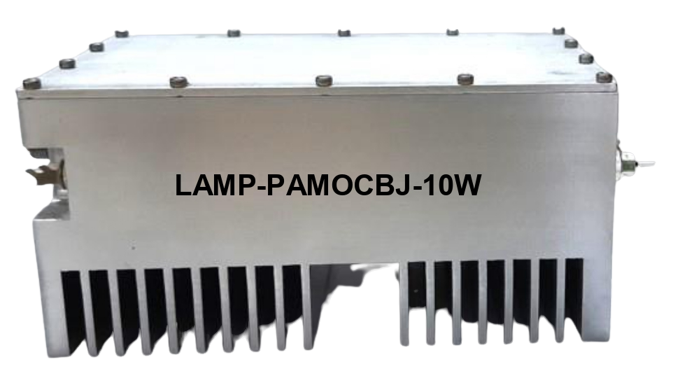

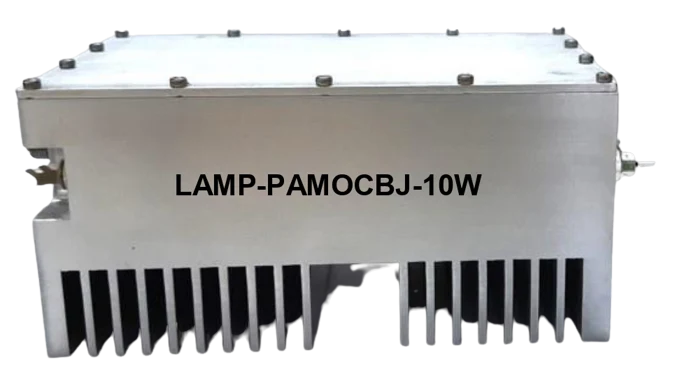

Power Amplifier

LAMP-PAMOCBJ-10W

50 Ω, Wideband, 1.5 to 2.5 GHz, 7.7-10 W, 28V, SMA.

TransmittersLaboratory useCellularcommunication systems

Center Frequency

0.55-3.5 GHz

Output Power

8-10 W

Efficiency

60-70

Gain

9.1-11.5 dB

Key Features

Frequency

0.55-3.25GHz

Drain efficiency

60-70.1%

Output power

39.1-41.55dBm

Gain

9.1-11.55 dB

Gain Compression

2-4dB

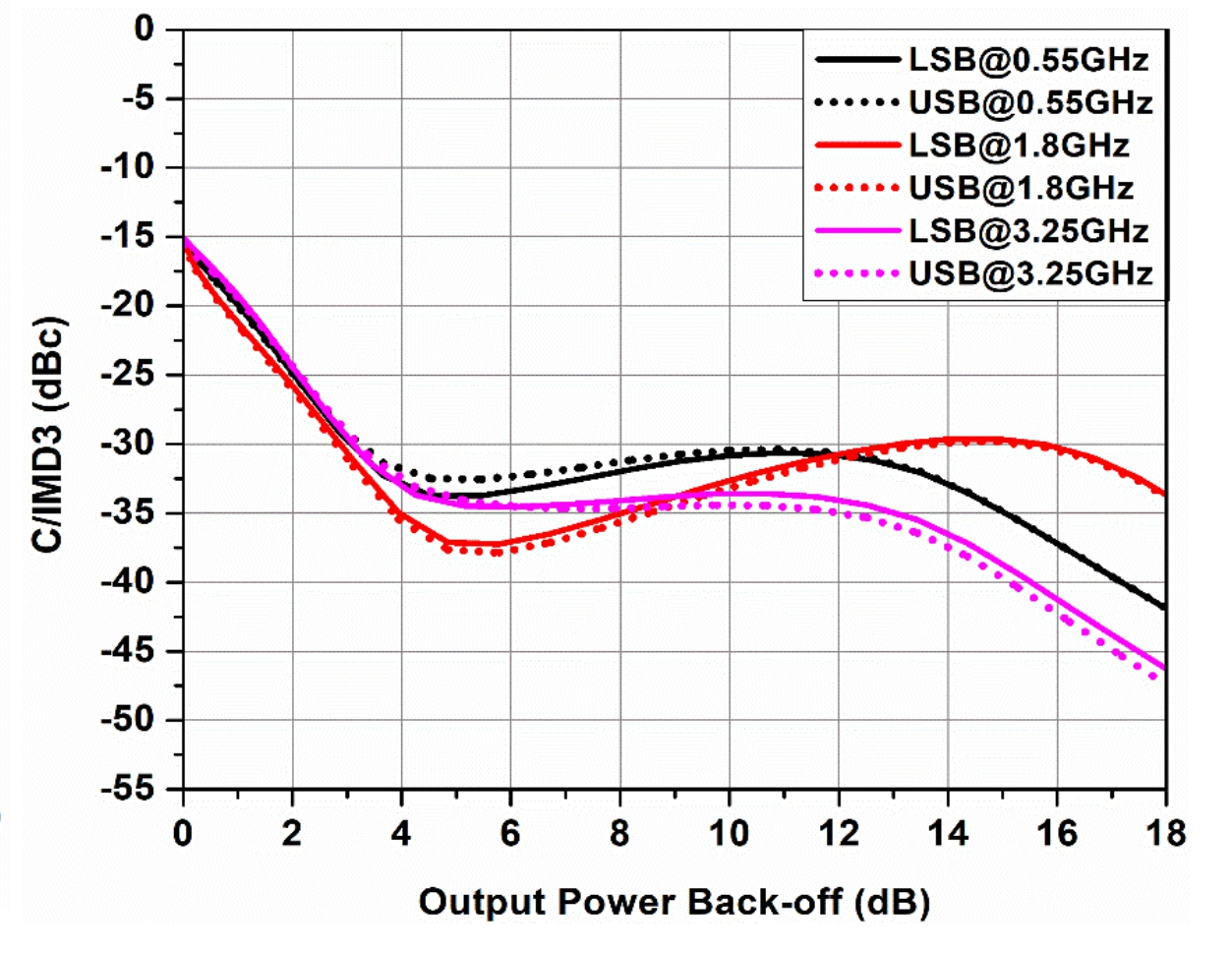

C/IMD3, < -28 dBc at 3dB back-off of output power

Applications

Application

Transmitters

Application

Laboratory use

Application

Cellular

Application

communication systems

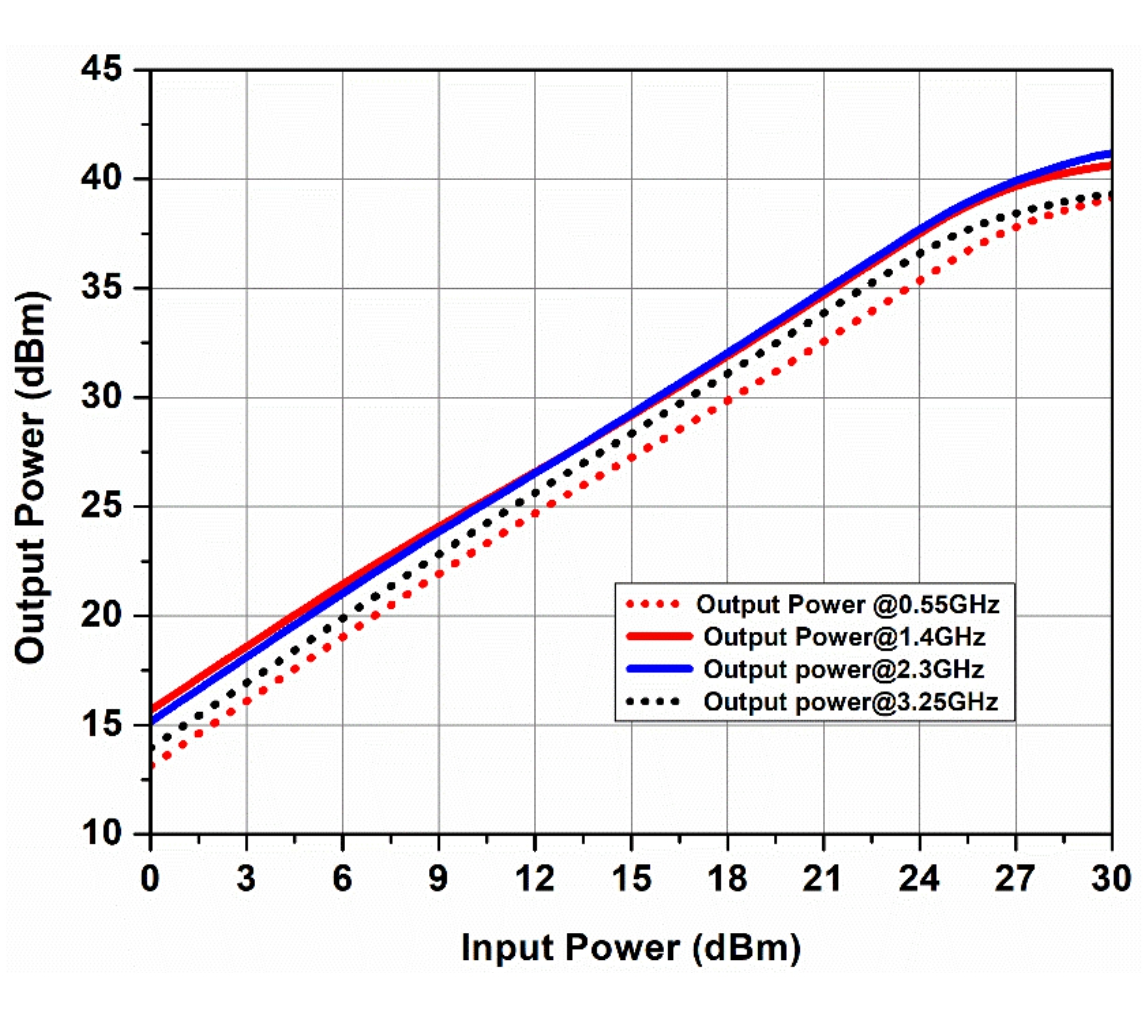

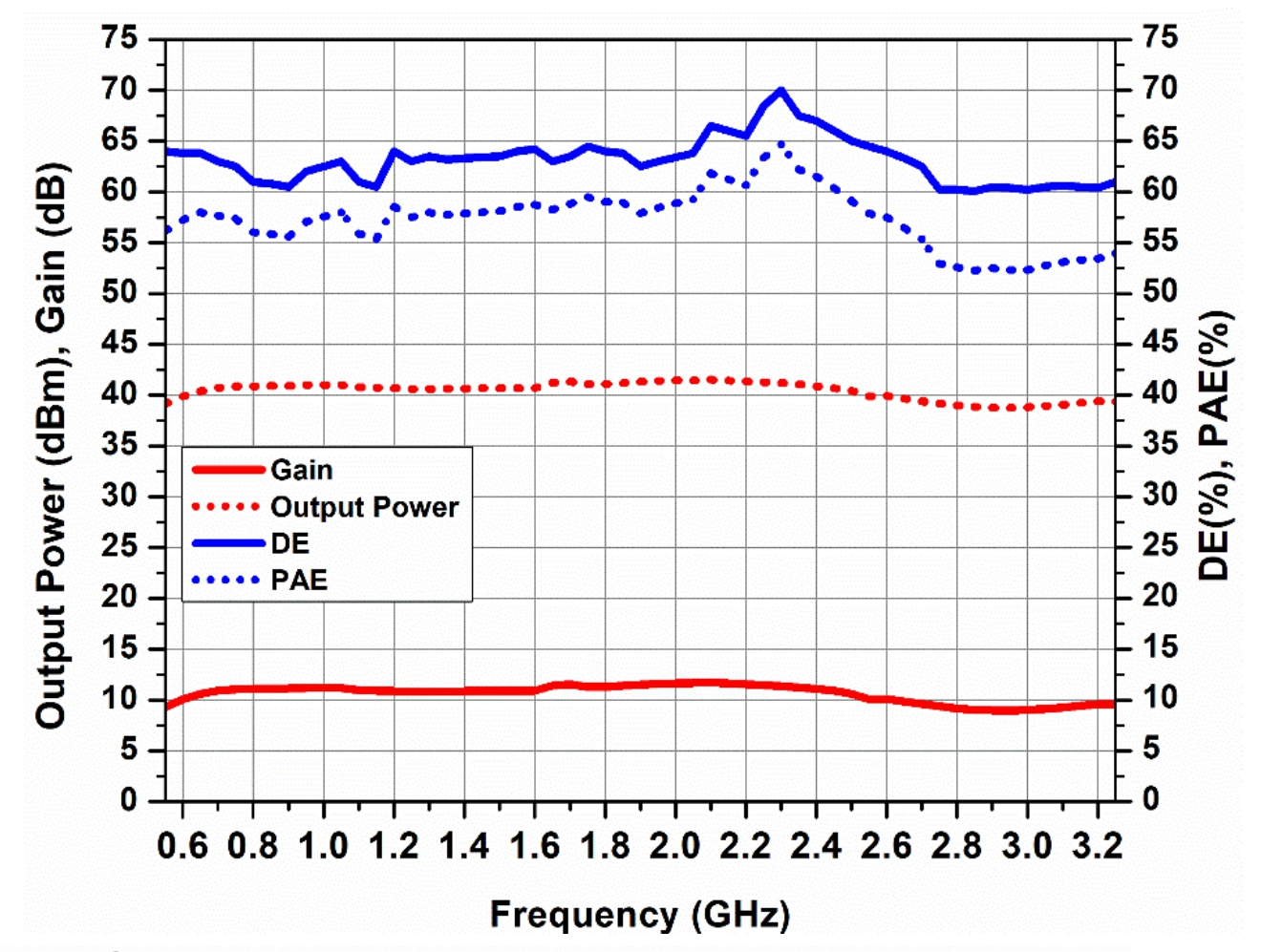

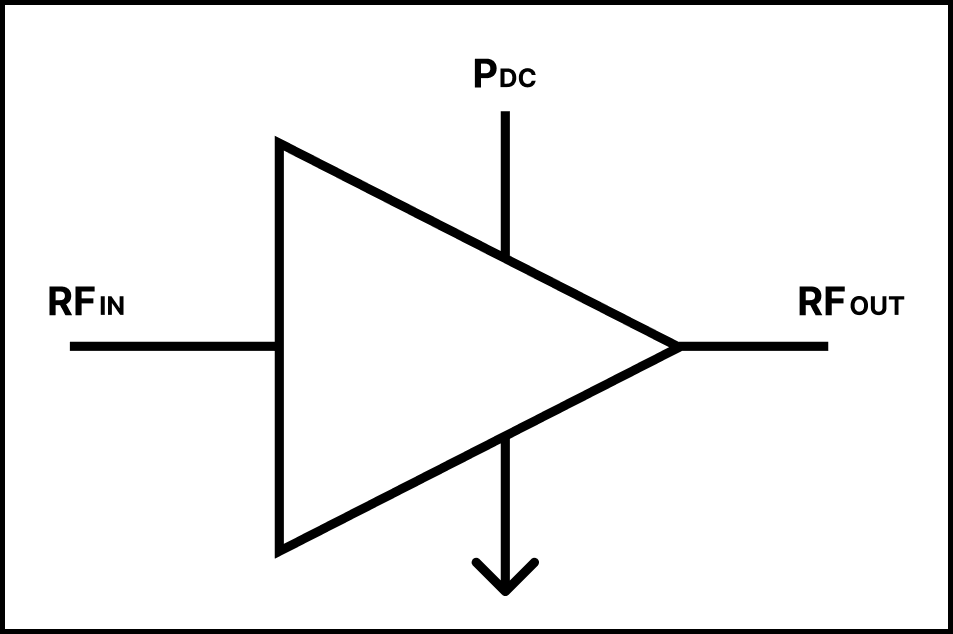

Diagrams
