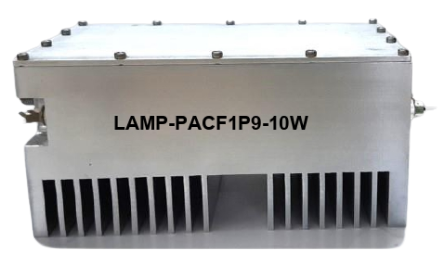

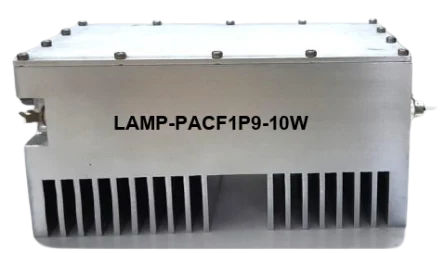

Power Amplifier

LAMP-PACF1P9-10W

50 Ω, Wideband, 1.5 to 2.5 GHz, 7.7-10 W, 28V, SMA.

CellularSDRsRadars

Center Frequency

1.5-2.5 GHz

Output Power

10 W

Efficiency

9.9-11.2

Gain

60-73 dB

Key Features

Frequency

1.5-2.5GHz

Drain efficiency

60-73%

Output power

38.9-40.4dBm

Gain at saturation

9.9-11.2 dB

Gain Compression

3-3.5 dB

Applications

Application

Cellular

Application

SDRs

Application

Radars

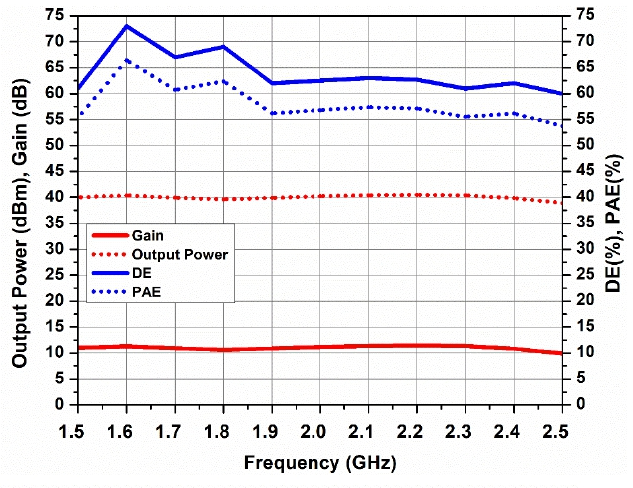

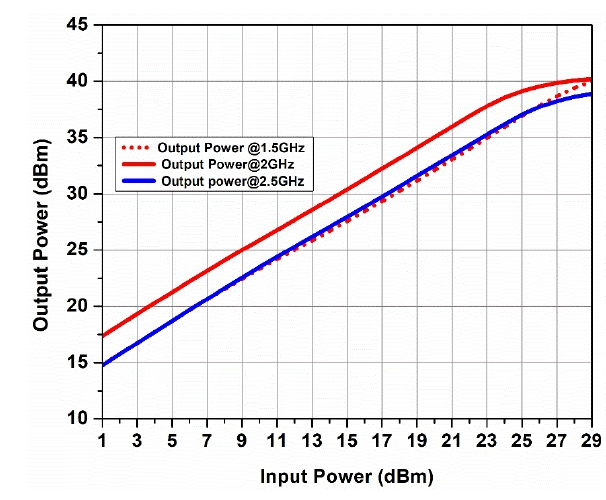

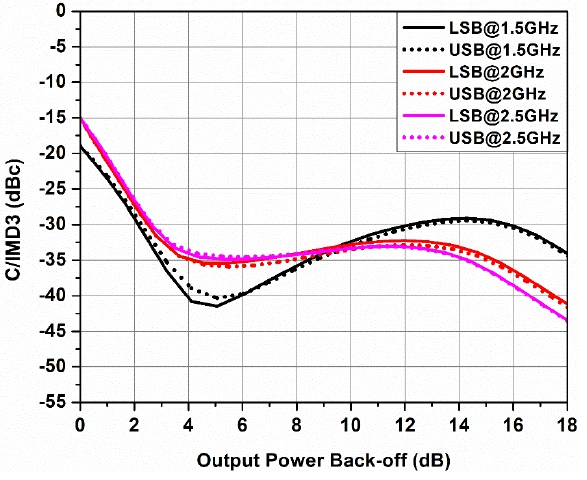

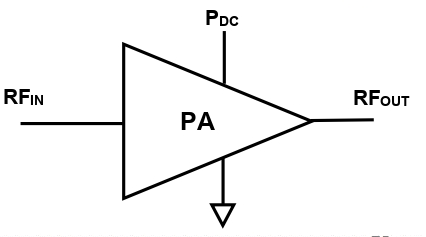

Diagrams
