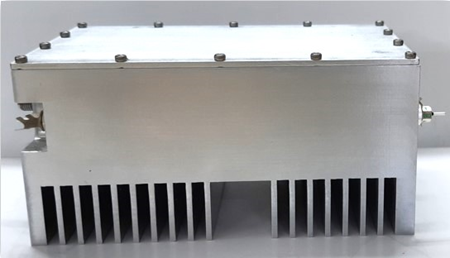

The company has varieties of Radio Frequency Power Amplifiers for L, S and C band in their product line. These Amplifiers are power stages as well as complete unit with DC/DC converters.
These amplifiers powered by Gallium Nitride device technology presents high efficiency (more than 60%) upto 100 W CW output power. Some of these involves most advanced Power Amplifiers design techniques such as continuum of classes (Class B/J, continuum of Class E/F ) enabling very high efficiency operation over the octave and even multi-octave frequency range. Such wideband designs with single discrete device and high efficiency operations together provides a reliable operation with small form factor. The company in-house R&D is also capable of customized design of the entire power amplifier units with VSWR monitoring, high Gain stages and supply cards for biasing. The company also provides the power amplifiers for Wireless communication such as Doherty Power Amplifiers.
Part Number | Center Frequency (Ghz) | Output Power (W) | Efficiency | Gain (dB) | Type Mode of Operation | Details |
---|---|---|---|---|---|---|
LAMP-PAMOCBJ-10W | 0.55-3.5 | 8-10 | 60-70 | 9.1-11.5 | Extended Continuous Class B/J | link |
LAMP-PAMOCCE-10W | 0.49-2.9 | 10 | 60-72 | 8.6-10.7 | Extended Continuous Class E | link |
LAMP-PAMOCCF-10W | 0.5-2.2 | 10 | 60-71 | 8-9.4 | Extended Continuous Class F | link |
LAMP-PACF1P9-10W | 1.5-2.5 | 10 | 9.9-11.2 | 60-73 | Extended Continuous Class F | link |
*LAMP-PACF1P9-10W-HG | 1.5-2.4 | 10 | 47 | 50-55* | Extended Continuous Class F | - |
LAMP-DPA1P8-50W | 1.85 | 50 (sat.) 5 (av.) | 45 (sat.) 35 (av.) | 50-55 | Doherty | - |
LAMP-DPA0P75-50W | 750 | 50 (sat.) 3.1-10 (av.) | 45 (sat.) 35 (av.) | 50-55 | Doherty | - |
