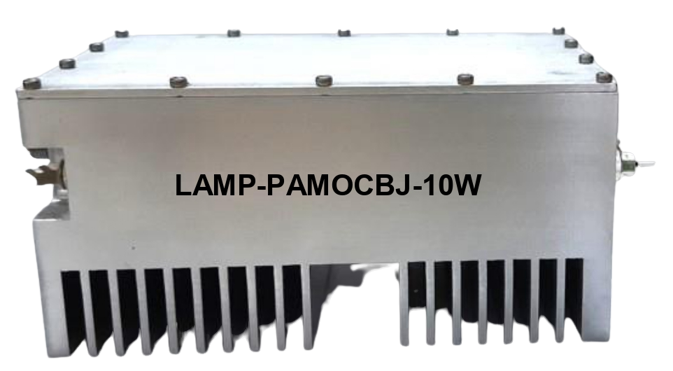

Power Amplifier: LAMP-PAMOCBJ-10W
50 Ω, Wideband, 1.5 to 2.5 GHz, 7.7-10 W, 28V, SMA.
Key Features

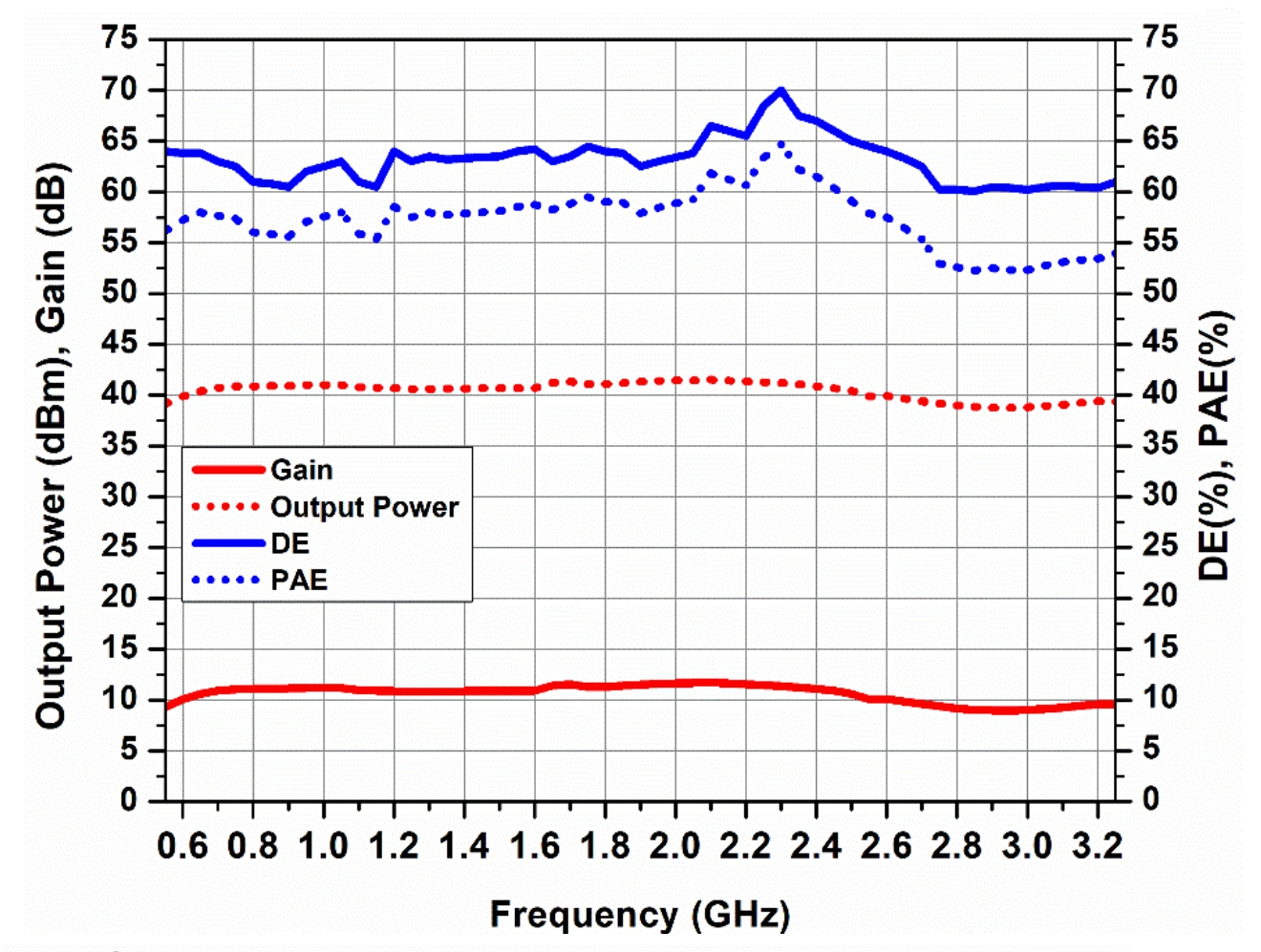

- Frequency:0.55-3.25GHz
- Drain efficiency: 60-70.1%

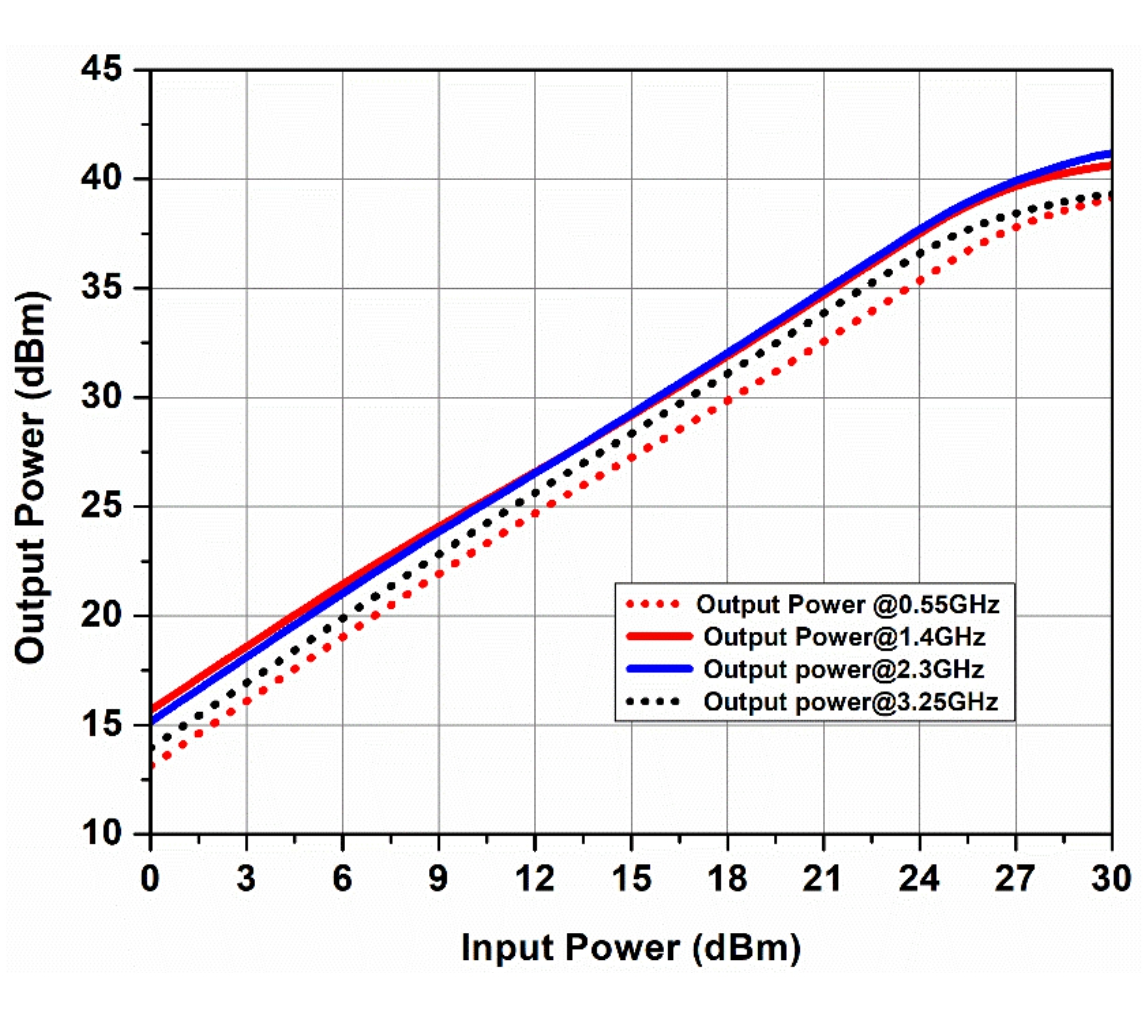

- Output power: 39.1-41.55dBm
- Gain:9.1-11.55 dB
- Gain Compression:2-4dB

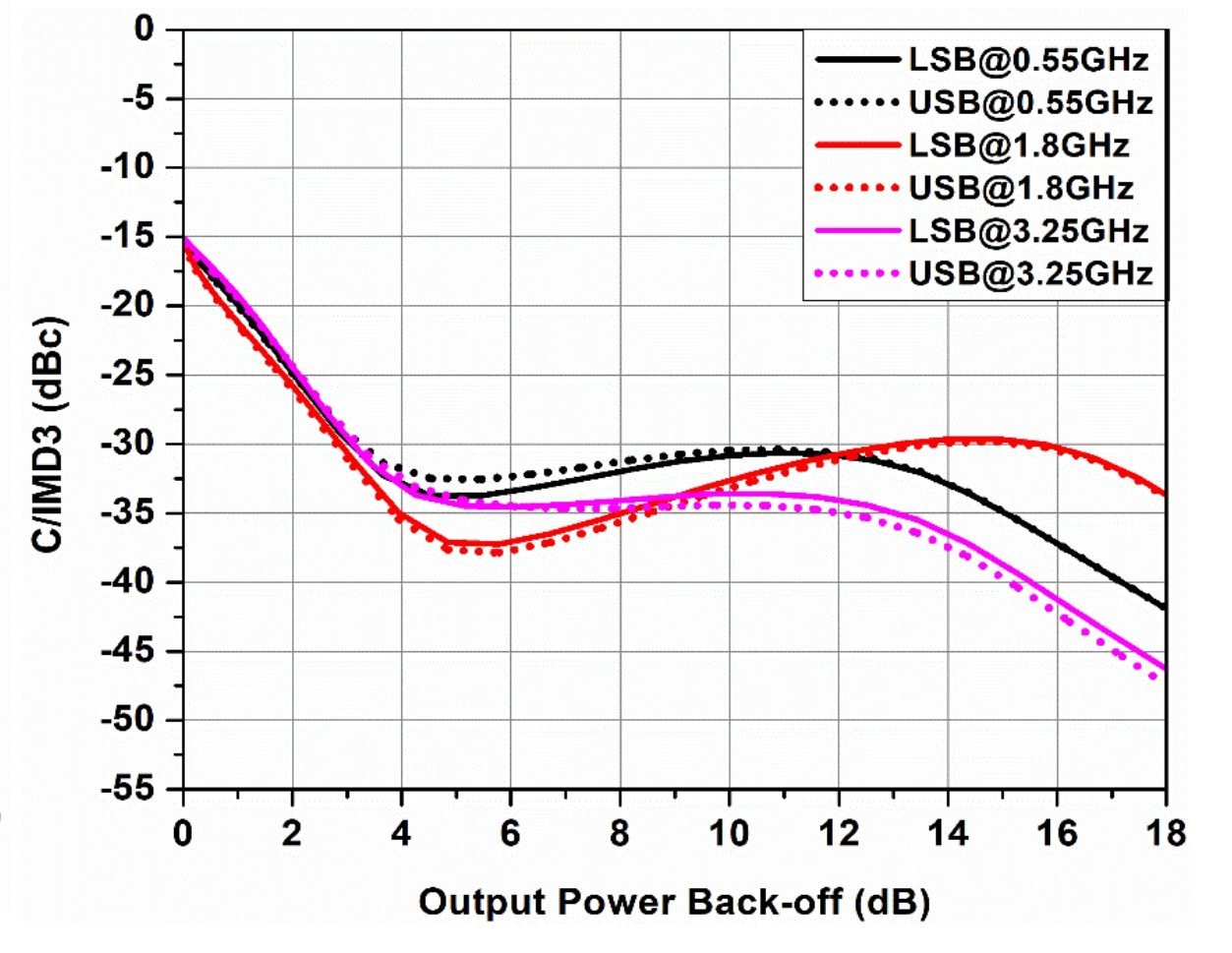

- C/IMD3,< -28 dBc at 3dB back-off of output power
Applications
- Transmitters
- Laboratory use
- Defense
- Cellular
- communication systems

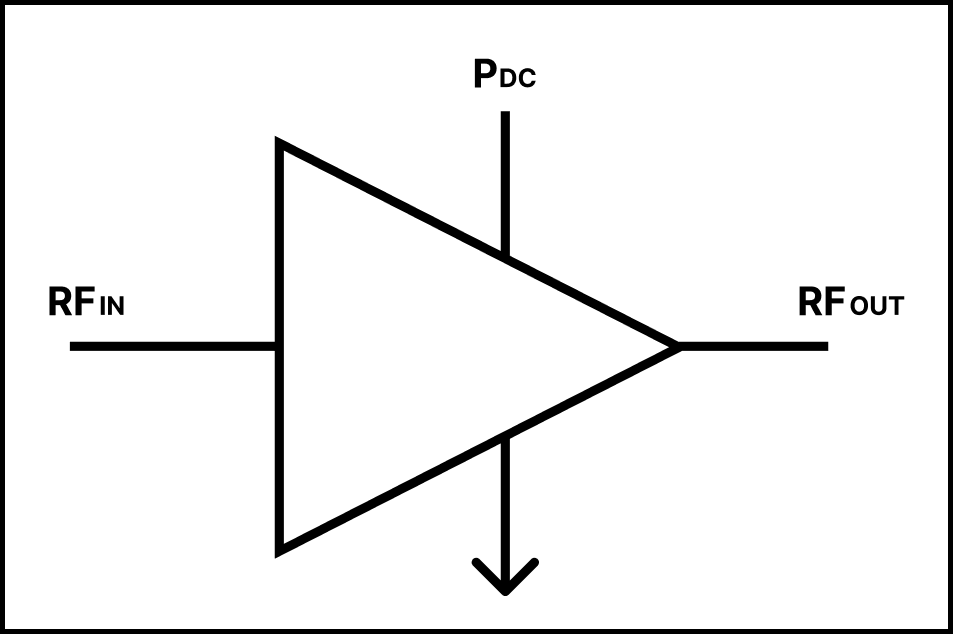

Diagrams
