Overview
Product brief

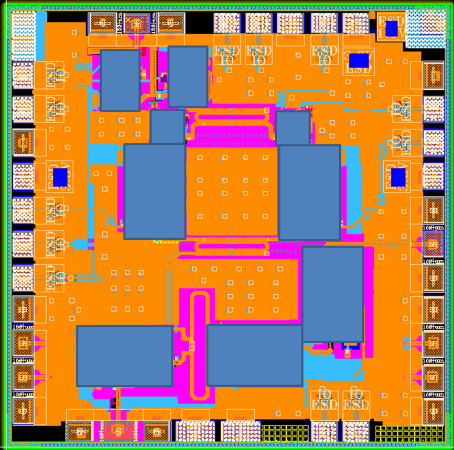

The product information lists this as a separate fully integrated radar front-end chip under fully integrated front-end chips.
Performance

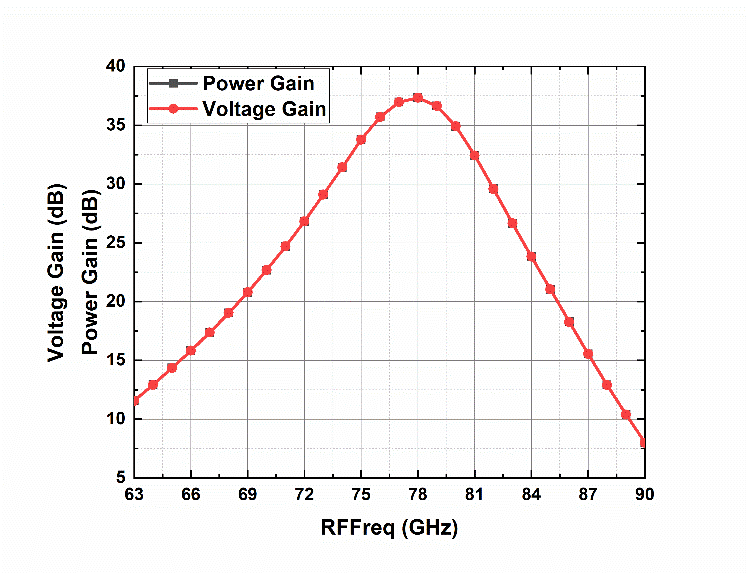

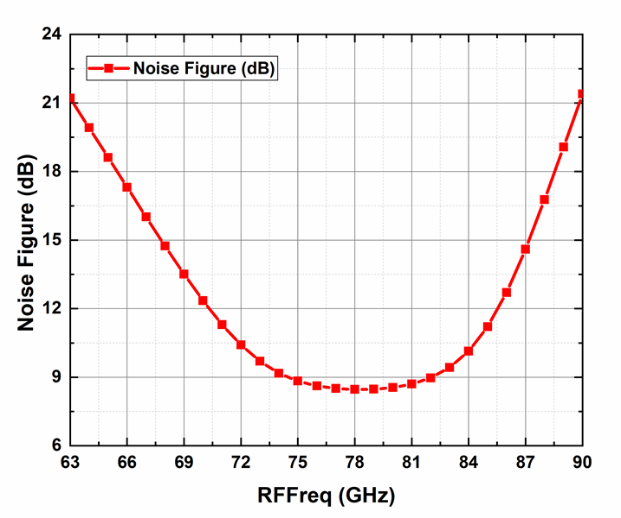

The radar front-end table lists 71-81 GHz RF frequency, 10.5 dBm Tx output power, 37 dB receiver conversion gain, 8.5 dB noise figure, and 19 GHz LO.
Technology
The process information identifies GF 130nm SiGe BiCMOS technology for this chip.
